ट्रांजिस्टर - IGBTs - मॉड्यूल

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
NXH40B120MNQ0SNG 80KW GENII 1200V 80MOHM SIC MOSF onsemi	3,916	-	RFQ		Tray	-	Active	-	Dual Boost Chopper	-	-	118 W	-	-	3.227 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH100B120H3Q0PTG IGBT MODULE 1200V 50A 186W 22PIM onsemi	3,735	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	50 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH450B100H4Q2F2SG 1000V,75A FSIII IGBT, MID SPEED onsemi	2,234	-	RFQ	डेटाशीत	Tray	-	Active	-	2 Independent	1000 V	101 A	234 W	2.25V @ 15V, 150A	600 µA	9.342 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH240B120H3Q1PG PIM Q1 3 CHANNEL IGBT+SIC BOOST onsemi	3,443	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Triple, Dual - Common Source	1200 V	68 A	158 W	2V @ 15V, 80A	400 µA	18.151 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH300B100H4Q2F2PG MASS MARKET 250KW 1500V Q2 3 LEV onsemi	3,566	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Dual, Common Source	1118 V	73 A	194 W	2.25V @ 15V, 100A	800 µA	6.323 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH300B100H4Q2F2SG MASS MARKET 250KW 1500V Q2 3 LEV onsemi	3,500	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Dual, Common Source	1118 V	73 A	194 W	2.25V @ 15V, 100A	800 µA	6.323 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

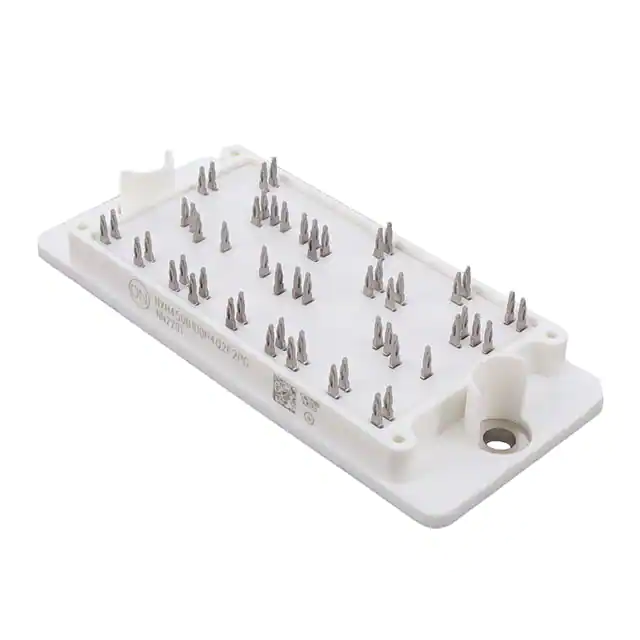

NXH450B100H4Q2F2PG 1000V,75A FSIII IGBT, MID SPEED onsemi	3,740	-	RFQ	डेटाशीत	Tray	-	Active	-	2 Independent	1000 V	101 A	234 W	2.25V @ 15V, 150A	600 µA	9.342 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH350N100H4Q2F2S1G IC PWR MODULE 1000V 350A PIM42 onsemi	3,197	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Three Level Inverter	1000 V	303 A	276 W	2.3V @ 15V, 375A	1 mA	24.146 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH350N100H4Q2F2P1G IC PWR MODULE 1000V 350A PIM42 onsemi	3,419	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Three Level Inverter	1000 V	303 A	276 W	2.3V @ 15V, 375A	1 mA	24.146 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH400N100H4Q2F2SG MASS MARKET 250KW 1500V Q2 PACK onsemi	2,177	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Three Level Inverter	1000 V	409 A	959 W	2.3V @ 15V, 400A	500 µA	26.093 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH50M65L4Q1SG Q1PACK 50A 650V onsemi	2,142	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Full Bridge	650 V	48 A	86 W	2.22V @ 15V, 50A	300 µA	3.137 nF @ 20 V	Standard	Yes	175°C (TJ)	Chassis Mount
NXH75M65L4Q1SG Q1PACK 75A 650V onsemi	3,996	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Half Bridge	650 V	59 A	86 W	2.22V @ 15V, 75A	300 µA	5.665 nF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH25C120L2C2SG IGBT MODULE, CIB 1200 V, 25 A IG onsemi	2,352	-	RFQ	डेटाशीत	Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	25 A	20 mW	2.4V @ 15V, 25A	250 µA	6.2 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH35C120L2C2S1G IGBT MOD 1200V 35A 26DIP onsemi	3,131	-	RFQ		Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	35 A	20 mW	2.4V @ 15V, 35A	250 µA	8.33 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH75M65L4Q1PTG 6KW H6.5 75A Q1PACK PRESS-FIT PI onsemi	2,723	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	Half Bridge	650 V	59 A	86 W	2.22V @ 15V, 75A	300 µA	5.665 nF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH100B120H3Q0STG IGBT MODULE 1200V 50A 186W PIM22 onsemi	3,001	-	RFQ	डेटाशीत	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	50 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH25T120L2Q1PG PIM Q1 3 CHANNEL T-TYPE NPC 25A onsemi	2,548	-	RFQ	डेटाशीत	Tray	-	Active	-	Three Phase Inverter	1200 V	25 A	81 W	2.5V @ 15V, 25A	300 µA	8.502 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH25T120L2Q1PTG PIM Q1 3 CHANNEL T-TYPE NPC 25A onsemi	2,800	-	RFQ	डेटाशीत	Tray	-	Active	-	Three Phase Inverter	1200 V	25 A	81 W	2.5V @ 15V, 25A	300 µA	8.502 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH027B120MNF2PTG IGBT MODULE 1200V onsemi	3,386	-	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
NXH50C120L2C2ES1G IGBT MOD 1200V 50A 26DIP onsemi	3,225	-	RFQ		Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	50 A	20 mW	2.4V @ 15V, 50A	250 µA	11.89 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
