और अधिक उत्पाद श्रेणियाँ

पावर रिले, 2 एम्प्स से अधिक

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
AZSR190-1A-12D RELAY SOLAR SPST 100A 12V American Zettler	242	-	RFQ	डेटाशीत	Tube	-	Active	Through Hole	12VDC	SPST-NO (1 Form A)	100 A	800VAC - Max	171.4 mA	Non Latching	-	PC Pin	-	Class F	9 VDC	1.2 VDC	40 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)

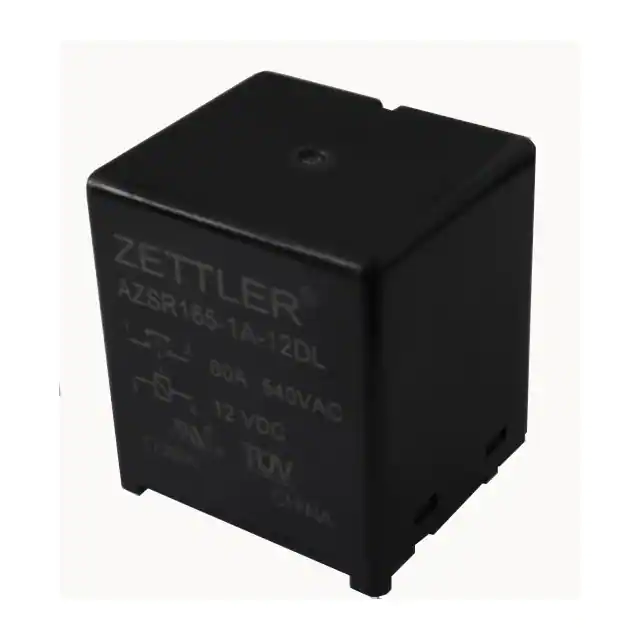

AZSR165-1A-12DL RELAY SOLAR SPST 80A 12V American Zettler	416	-	RFQ	डेटाशीत	Tube	-	Active	Socketable	12VDC	SPST-NO (1 Form A)	80 A	690VAC - Max	184.6 mA	Non Latching	-	Plug In, Quick Connect - 0.110 (2.8mm)	-	Class F	9 VDC	0.6 VDC	40 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
AZSR165-1AE-12DL RELAY SOLAR SPST 80A 12V American Zettler	150	-	RFQ	डेटाशीत	Tube	-	Active	Socketable	12VDC	SPST-NO (1 Form A)	80 A	690VAC - Max	184.6 mA	Non Latching	-	Plug In, Quick Connect - 0.110 (2.8mm)	-	Class F	9 VDC	0.6 VDC	40 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZSR190-1A-24D RELAY SOLAR SPST 100A 24V American Zettler	115	-	RFQ	डेटाशीत	Tube	-	Active	Through Hole	24VDC	SPST-NO (1 Form A)	100 A	800VAC - Max	80 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	2.4 VDC	40 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
AZSR165-1A-24DL RELAY SOLAR SPST 80A 24V American Zettler	312	-	RFQ	डेटाशीत	Tube	-	Active	Socketable	24VDC	SPST-NO (1 Form A)	80 A	690VAC - Max	92.3 mA	Non Latching	-	Plug In, Quick Connect - 0.110 (2.8mm)	-	Class F	18 VDC	1.2 VDC	40 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
AZSR165-1AE-24DL RELAY SOLAR SPST 80A 24V American Zettler	150	-	RFQ	डेटाशीत	Tube	-	Active	Socketable	24VDC	SPST-NO (1 Form A)	80 A	690VAC - Max	92.3 mA	Non Latching	-	Plug In, Quick Connect - 0.110 (2.8mm)	-	Class F	18 VDC	1.2 VDC	40 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZ2800-2C-120AE RELAY EV CHRG SOLAR DPDT 3A 120V American Zettler	256	-	RFQ	डेटाशीत	Tray	-	Active	Chassis Mount	120VAC	DPDT (2 Form C)	3 A	600VAC, 30VDC - Max	33.3 mA	Non Latching	-	Quick Connect - 0.187/0.250	Sealed - Fully	Class F	96 VAC	24 VAC	25 ms	25 ms	-40°C ~ 65°C	Silver Cadmium Oxide (AgCdO)
AZ2850-2C-120AE RELAY GEN PURPOSE DPDT 40A 120V American Zettler	199	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	120VAC	DPDT (2 Form C)	40 A	600VAC, 30VDC - Max	144.6 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	96 VAC	24 VAC	15 ms	10 ms	-40°C ~ 65°C	Silver Cadmium Oxide (AgCdO)
AZ2850-2C-240AE RELAY GEN PURPOSE DPDT 40A 240V American Zettler	198	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	240VAC	DPDT (2 Form C)	40 A	600VAC, 30VDC - Max	63.2 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	192 VAC	48 VAC	15 ms	10 ms	-40°C ~ 65°C	Silver Cadmium Oxide (AgCdO)
AZ2850-2C-277AE RELAY GEN PURPOSE DPDT 40A 277V American Zettler	200	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	277VAC	DPDT (2 Form C)	40 A	600VAC, 30VDC - Max	58.9 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	221.6 VAC	55.4 VAC	15 ms	10 ms	-40°C ~ 65°C	Silver Cadmium Oxide (AgCdO)
AZSR190T-1AE-12D RELAY GEN PURPOSE SPST 100A 12V American Zettler	118	-	RFQ	डेटाशीत	Tube	-	Active	Through Hole	12VDC	SPST-NO (1 Form A)	100 A	800VAC - Max	171.4 mA	Non Latching	-	PC Pin	-	Class F	9 VDC	1.2 VDC	40 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZSR250-2AE-12D RELAY EV CHRG SOLAR DPST 55A 12V American Zettler	204	-	RFQ	डेटाशीत	Box	-	Active	Through Hole	12VDC	DPST-NO (2 Form A)	55 A	440VAC, 150VDC - Max	40 mA	Non Latching	-	Plug In	-	Class F	9 VDC	0.6 VDC	40 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZSR250-2AE-24D RELAY EV CHRG SOLAR DPST 55A 24V American Zettler	144	-	RFQ	डेटाशीत	Tube	-	Active	Socketable	24VDC	DPST-NO (2 Form A)	55 A	440VAC, 150VDC - Max	20 mA	Non Latching	-	Plug In	-	Class F	18 VDC	1.2 VDC	40 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZSR190T-1AE-24D RELAY GEN PURPOSE SPST 100A 24V American Zettler	278	-	RFQ	डेटाशीत	Tube	-	Active	Through Hole	24VDC	SPST-NO (1 Form A)	100 A	800VAC - Max	80 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	2.4 VDC	40 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZDC105-1AH-24DT RELAY GEN PURPOSE SPST 150A 24V American Zettler	196	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	24VDC	SPST-NO (1 Form A)	150 A	60VDC - Max	133.3 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	30 ms	10 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
AZDC105-1AH-12DT RELAY GEN PURPOSE SPST 150A 12V American Zettler	165	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	12VDC	SPST-NO (1 Form A)	150 A	60VDC - Max	266.7 mA	Non Latching	-	PC Pin	-	Class F	9 VDC	0.6 VDC	30 ms	10 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
AZ943-1AH-5DE RELAY GEN PURPOSE SPST 15A 5V American Zettler	878	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	5VDC	SPST-NO (1 Form A)	15 A	277VAC, 30VDC - Max	71.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	3.8 VDC	0.5 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Tin Oxide (AgSnO)
AZ943-1CH-12DEF RELAY GEN PURPOSE SPDT 10A 12V American Zettler	224	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	12VDC	SPDT (1 Form C)	10 A	277VAC, 30VDC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 110°C	Silver Tin Oxide (AgSnO)
AZ9403-1C-24DE RELAY GEN PURPOSE SPDT 3A 24V American Zettler	506	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	24VDC	SPDT (1 Form C)	3 A	400VAC, 150VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	1.2 VDC	8 ms	5 ms	-40°C ~ 110°C	Silver Tin Oxide (AgSnO)
AZ7709-1AE-24DE RELAY GEN PURPOSE SPST 5A 24V American Zettler	775	-	RFQ	डेटाशीत	Tray	-	Active	Through Hole	24VDC	SPST-NO (1 Form A)	5 A	250VAC, 30VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	1.2 VDC	8 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
