ऑप्टोआइसोलेटर - लॉजिक आउटपुट
| फोटो: | निर्माता भाग संख्या | उपलब्धता | मूल्य | मात्रा | डेटाशीत | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-2630#320OPTOISO 5KV 2CH OPEN COL 8DIP GW Broadcom Limited |
2,181 | - |
RFQ |
डेटाशीत |
Tube | - | Discontinued at Mosen | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2211#360OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited |
2,895 | - |
RFQ |
डेटाशीत |
Tube | - | Discontinued at Mosen | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
HCPL-7611-000EOPTOISO 3.75KV OPEN COLL 8DIP Broadcom Limited |
3,930 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
ACPL-772L-360EOPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited |
3,915 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACPL-K63L-520EOPTOISO 5KV 2CH OPEN COLL 8SO Broadcom Limited |
2,533 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Obsolete | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-K73L-020EOPTOISO 5KV 2CH PUSH PULL 8SSO Broadcom Limited |
2,922 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-K73L-520EOPTOISO 5KV 2CH PUSH PULL 8SSO Broadcom Limited |
3,010 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Obsolete | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACPL-M61T-500OPTOISO 4KV OPN COLLECTOR 5SO Broadcom Limited |
2,283 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Discontinued at Mosen | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ACPL-W456-020EOPTOISO 5KV OPEN COLLECTOR 6SO Broadcom Limited |
2,387 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-W456-520EOPTOISO 5KV OPEN COLLECTOR 6SO Broadcom Limited |
3,084 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-W70L-020EOPTOISO 5KV PUSH PULL 6SSO Broadcom Limited |
2,259 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W70L-520EOPTOISO 5KV PUSH PULL 6SSO Broadcom Limited |
2,044 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACPL-077L-060EOPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited |
2,663 | - |
RFQ |
डेटाशीत |
Tube | - | Obsolete | 1 | 1/0 | 3750Vrms | 35kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 4ns, 3ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

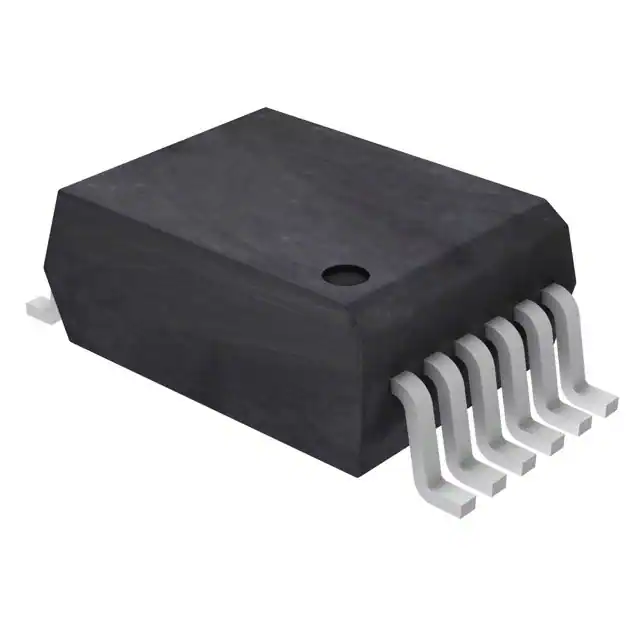

ACFL-6212T-000EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
3,871 | - |
RFQ |
डेटाशीत |
Tube | Automotive, AEC-Q100, R²Coupler™ | Obsolete | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
5962-1223601HEAOPTOISO Broadcom Limited |
3,568 | - |
RFQ |
डेटाशीत |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5962-1223601HECOPTOISO Broadcom Limited |
2,784 | - |
RFQ |
डेटाशीत |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5962-1223601HXAOPTOISO Broadcom Limited |
3,214 | - |
RFQ |
डेटाशीत |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6N137-560OPTOCOUPLER(10MBD) T/R+VDE Broadcom Limited |
2,946 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.8V (Max) | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-261N-520OPTOCOUPLER 10MBD UL+T/R Broadcom Limited |
3,576 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2630-520OPTOCOUPLER 10MBD UL+T/R Broadcom Limited |
3,042 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | - | Discontinued at Mosen | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
