LED लाइटिंग - COBs, इंजन, मॉड्यूल, स्ट्रिप्स

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXA1507-0000-000N00G40E5 LED COB CXA1507 NEUTRAL WHT SQ CreeLED, Inc.	2,896	-	RFQ	डेटाशीत	Tray	XLamp® CXA1507	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	870lm (840lm ~ 900lm)	200mA	85°C	37V	118 lm/W	375mA	70	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1304-0000-000C00B435G LED COB CXA1304 3500K WHITE SMD CreeLED, Inc.	2,032	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	425lm (410lm ~ 440lm)	400mA	85°C	9V	118 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C00B430H LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	102	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	425lm (410lm ~ 440lm)	400mA	85°C	9V	118 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C0HB440F LED COB CXA1304 NEUTRAL WHT SQ CreeLED, Inc.	3,724	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	425lm (410lm ~ 440lm)	400mA	85°C	9V	118 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000F0HB440F LED COB CXA1304 NEUTRAL WHT SQ CreeLED, Inc.	3,667	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	425lm (410lm ~ 440lm)	200mA	85°C	18V	118 lm/W	500mA	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C00A40E7 LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	100	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3000K	-	Square	368lm (355lm ~ 380lm)	400mA	85°C	9V	102 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C00B427G LED COB CXA1304 2700K WHITE SMD CreeLED, Inc.	100	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	425lm (410lm ~ 440lm)	400mA	85°C	9V	118 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C00A20E8 LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	2,049	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	2700K	-	Square	343lm (330lm ~ 368lm)	400mA	85°C	9V	95 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1507-0000-000N00G265F LED ARRAY XLAMP CXA1507 WHITE CreeLED, Inc.	3,477	-	RFQ	डेटाशीत	Tray	XLamp® CXA1507	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Square	810lm (780lm ~ 840lm)	200mA	85°C	37V	110 lm/W	375mA	70	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1304-0000-000C00A430F LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	100	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	368lm (355lm ~ 380lm)	400mA	85°C	9V	102 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C00B20E7 LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	2,185	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3000K	-	Square	395lm (380lm ~ 410lm)	400mA	85°C	9V	110 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1507-0000-000N00G40E3 LED COB CXA1507 COOL WHT SQUARE CreeLED, Inc.	3,047	-	RFQ	डेटाशीत	Tray	XLamp® CXA1507	Active	Chip On Board (COB)	White, Cool	5000K	-	Square	870lm (840lm ~ 900lm)	200mA	85°C	37V	118 lm/W	375mA	70	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1304-0000-000C00B235F LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc.	2,491	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3500K 4-Step MacAdam Ellipse	-	Square	395lm (380lm ~ 410lm)	400mA	85°C	9V	110 lm/W	1A	80	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C0Y9430G LED COB CXA1304 3000K WHITE SMD CreeLED, Inc.	106	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	310lm (290lm ~ 330lm)	400mA	85°C	9V	86 lm/W	1A	93	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1507-0000-000F00G230H LED COB CXA1507 3000K WHITE SMD CreeLED, Inc.	2,425	-	RFQ	डेटाशीत	Tray	XLamp® CXA1507	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	810lm (780lm ~ 840lm)	400mA	85°C	18V	113 lm/W	750mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1507-0000-000F0HG240F LED COB CXA1507 NEUTRAL WHT SQ CreeLED, Inc.	102	-	RFQ	डेटाशीत	Tray	XLamp® CXA1507	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	810lm (780lm ~ 840lm)	400mA	85°C	18V	113 lm/W	750mA	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXB1304-0000-000C0UB230G LED ARRAY 6MM 3000K 90CRI 380LM CreeLED, Inc.	2,219	-	RFQ	डेटाशीत	Tray	Xlamp® CXB1304	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	395lm (380lm ~ 410lm)	400mA	85°C	9V	110 lm/W	1A	90	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia
CXA1304-0000-000C0UA450H LED ARRAY XLAMP CXA1304 WHITE CreeLED, Inc.	2,458	-	RFQ	डेटाशीत	Tray	XLamp® CXA1304	Active	Chip On Board (COB)	White, Cool	5000K 2-Step MacAdam Ellipse	-	Square	368lm (355lm ~ 380lm)	400mA	85°C	9V	102 lm/W	1A	90	115°	-	13.35mm L x 13.35mm W	1.70mm	6.00mm Dia

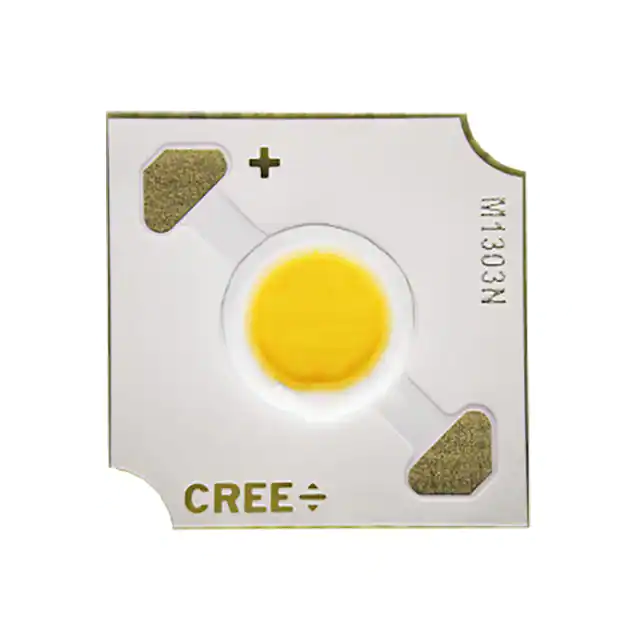

CMA1303-0000-000F0U0A30G LED COB CMA1304 3000K WHT SMD CreeLED, Inc.	100	-	RFQ	डेटाशीत	Tray	XLamp® CMA1303	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	659lm (Typ)	350mA	85°C	18.7V	101 lm/W	700mA	90	116°	-	13.35mm L x 13.35mm W	1.70mm	4.50mm Dia
CMA1303-0000-000C0U0A30G LED COB CMA1304 3000K WHT SMD CreeLED, Inc.	2,922	-	RFQ	डेटाशीत	Tray	XLamp® CMA1303	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	659lm (Typ)	700mA	85°C	9.35V	101 lm/W	1.4A	90	116°	-	13.35mm L x 13.35mm W	1.70mm	4.50mm Dia
