और अधिक उत्पाद श्रेणियाँ

LED लाइटिंग - COBs, इंजन, मॉड्यूल, स्ट्रिप्स

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRC-30G1KH0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	3,408	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	13637lm (Typ)	1.3A	25°C	66.7V	157 lm/W	4.75A	90	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-27G10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,102	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	12457lm (Typ)	1.3A	25°C	66.7V	144 lm/W	4.75A	90	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-27E10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,284	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	15099lm (Typ)	1.3A	25°C	66.7V	174 lm/W	4.75A	80	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-40E10K0-C-83 VERO 29C NEUTRAL WHITE LED ARRAY Bridgelux	3,118	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	16515lm (Typ)	1.3A	25°C	66.7V	190 lm/W	4.75A	80	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-30E10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,735	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	16043lm (Typ)	1.3A	25°C	66.7V	185 lm/W	4.75A	80	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-27G1KH0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,321	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	12995lm (Typ)	1.3A	25°C	66.7V	150 lm/W	4.75A	90	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-30G10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	3,401	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	13023lm (Typ)	1.3A	25°C	66.7V	150 lm/W	4.75A	90	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-35E10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,626	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	16420lm (Typ)	1.3A	25°C	66.7V	189 lm/W	4.75A	80	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-35G10K0-C-83 VERO 29C WARM WHITE LED ARRAY Bridgelux	2,825	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	13495lm (Typ)	1.3A	25°C	66.7V	156 lm/W	4.75A	90	120°	-	49.20mm Dia	1.90mm	29.10mm Dia
BXRC-50E10K1-C-84-SE VERO SE 29C COOL WHITE LED ARRAY Bridgelux	2,040	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	16662lm (Typ)	1.3A	25°C	66.7V	192 lm/W	4.75A	80	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-30C10K1-C-84-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,997	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Round	16756lm (Typ)	1.3A	25°C	66.7V	193 lm/W	4.75A	70	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-27G10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,867	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	12426lm (Typ)	1.3A	25°C	66.7V	143 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-30G1KH0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,344	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	13602lm (Typ)	1.3A	25°C	66.7V	157 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-27E10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,119	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	15062lm (Typ)	1.3A	25°C	66.7V	174 lm/W	4.75A	80	120°	-	49.20mm Dia	3.60mm	29.10mm Dia

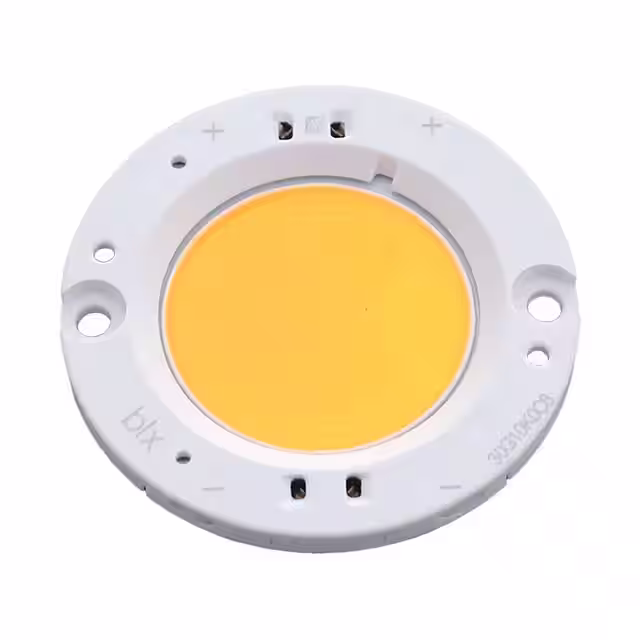

BXRC-30G10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,564	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	12991lm (Typ)	1.3A	25°C	66.7V	150 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-30E10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	2,328	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	16003lm (Typ)	1.3A	25°C	66.7V	185 lm/W	4.75A	80	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-35E10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	2,462	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	16379lm (Typ)	1.3A	25°C	66.7V	189 lm/W	4.75A	80	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-40G10K0-C-83-SE VERO SE 29C NEUTRAL WHITE LED AR Bridgelux	2,420	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	13744lm (Typ)	1.3A	25°C	66.7V	159 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-27G1KH0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,379	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	12962lm (Typ)	1.3A	25°C	66.7V	149 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
BXRC-35G10K0-C-83-SE VERO SE 29C WARM WHITE LED ARRAY Bridgelux	3,948	-	RFQ	डेटाशीत	Tray	Gen 8 Vero® SE 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	13461lm (Typ)	1.3A	25°C	66.7V	155 lm/W	4.75A	90	120°	-	49.20mm Dia	3.60mm	29.10mm Dia
