और अधिक उत्पाद श्रेणियाँ

LED लाइटिंग - COBs, इंजन, मॉड्यूल, स्ट्रिप्स

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRH-35H0300-A-83 V3 HD WARM WHITE LED ARRAY Bridgelux	600	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	299lm (Typ)	80mA	25°C	35.2V	106 lm/W	180mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-27H0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	598	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	273lm (Typ)	160mA	25°C	17.6V	97 lm/W	360mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-35H0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	598	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	299lm (Typ)	160mA	25°C	17.6V	106 lm/W	360mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia

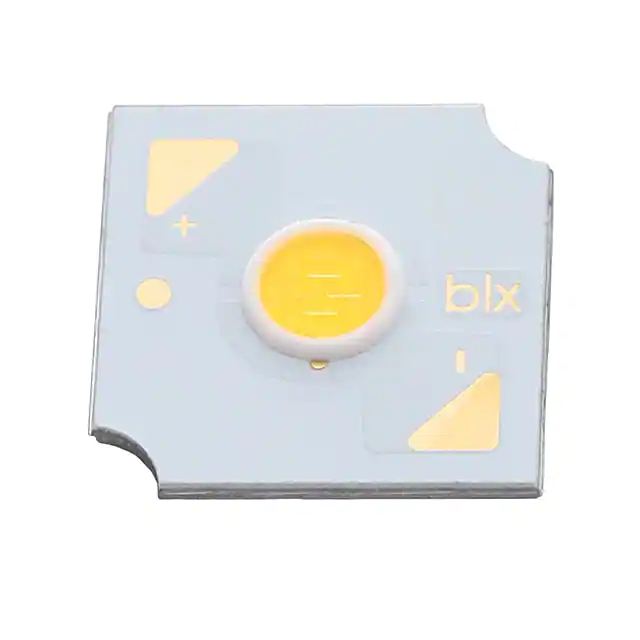

BXRH-40E0300-B-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	598	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	408lm (Typ)	160mA	25°C	17.6V	145 lm/W	360mA	80	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-27G0300-A-83 V3 HD WARM WHITE LED ARRAY Bridgelux	597	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	307lm (Typ)	80mA	25°C	35.2V	109 lm/W	180mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-27H0300-A-83 V3 HD WARM WHITE LED ARRAY Bridgelux	596	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	273lm (Typ)	80mA	25°C	35.2V	97 lm/W	180mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia

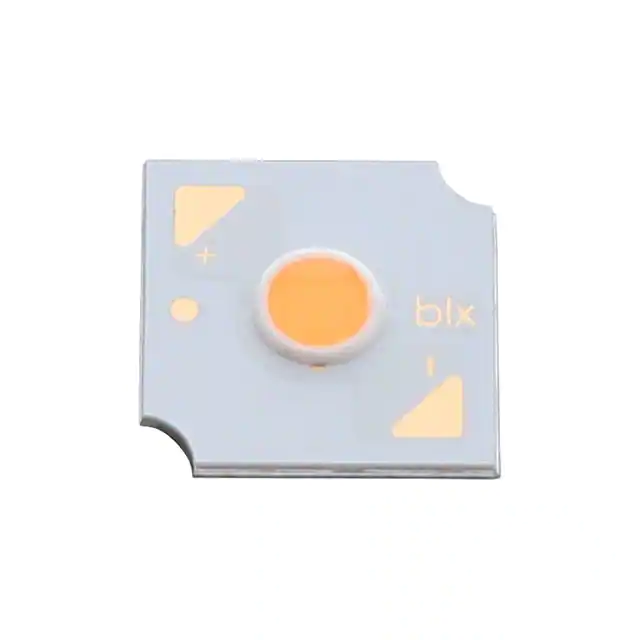

BXRH-35G0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	595	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	333lm (Typ)	160mA	25°C	17.6V	118 lm/W	360mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-40H0300-A-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	594	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	307lm (Typ)	80mA	25°C	35.2V	109 lm/W	180mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-30G0300-A-83 V3 HD WARM WHITE LED ARRAY Bridgelux	594	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	321lm (Typ)	80mA	25°C	35.2V	114 lm/W	180mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-35G0300-A-83 V3 HD WARM WHITE LED ARRAY Bridgelux	590	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	333lm (Typ)	80mA	25°C	35.2V	118 lm/W	180mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-30H0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	586	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	291lm (Typ)	160mA	25°C	17.6V	103 lm/W	360mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-40H0300-B-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	583	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	307lm (Typ)	160mA	25°C	17.6V	109 lm/W	360mA	97 (Typ)	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-40G0300-A-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	580	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	340lm (Typ)	80mA	25°C	35.2V	121 lm/W	180mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-30G0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	568	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	321lm (Typ)	160mA	25°C	17.6V	114 lm/W	360mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-27G0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	550	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	307lm (Typ)	160mA	25°C	17.6V	109 lm/W	360mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-30E0300-B-83 V3 HD WARM WHITE LED ARRAY Bridgelux	545	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	396lm (Typ)	160mA	25°C	17.6V	141 lm/W	360mA	80	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-40E0300-A-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	200	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	408lm (Typ)	80mA	25°C	35.2V	145 lm/W	180mA	80	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
BXRH-40G0300-B-83 V3 HD NEUTRAL WHITE LED ARRAY Bridgelux	2,147	-	RFQ	डेटाशीत	Tube	Gen 8 V3 HD LED Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	340lm (Typ)	160mA	25°C	17.6V	121 lm/W	360mA	90	120°	-	12.50mm L x 12.50mm W	1.63mm	3.80mm Dia
SPHWHAHDNB27YZT3DC LED COB 3 STEP Samsung Semiconductor, Inc.	500	-	RFQ	डेटाशीत	Box	COB D Gen3 Plus	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	884lm (Typ)	180mA	85°C	33.7V	145 lm/W	360mA	90	115°	-	13.50mm L x 13.50mm W	1.50mm	9.80mm Dia
SPHWHAHDNB25YZU3DC LED COB 3 STEP Samsung Semiconductor, Inc.	500	-	RFQ	डेटाशीत	Box	COB D Gen3 Plus	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	1021lm (Typ)	180mA	85°C	33.7V	167 lm/W	360mA	80	115°	-	13.50mm L x 13.50mm W	1.50mm	9.80mm Dia
