करंट सेंस ट्रांसफ़ॉर्मर

निर्माता भाग संख्या	उपलब्धता	मूल्य	मात्रा	डेटाशीत	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PA1005.070QNLT XFMR CURR SENSE 1:70 AECQ SMD Pulse Electronics Power	2,010	-	RFQ	डेटाशीत	Tape & Reel (TR)	PA1005QNL	Active	50kHz ~ 1MHz	Invasive	20 A	980 µH	-	1:70	-	0.75mOhm Primary, 4.75Ohm Secondary Max	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
P8205NL CURR SENSE XFMR 1:50 SMD Pulse Electronics Power	2,633	-	RFQ		Bag	P820X	Active	20kHz ~ 1MHz	Invasive	10 A	500 µH	-	50:1	-	6mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

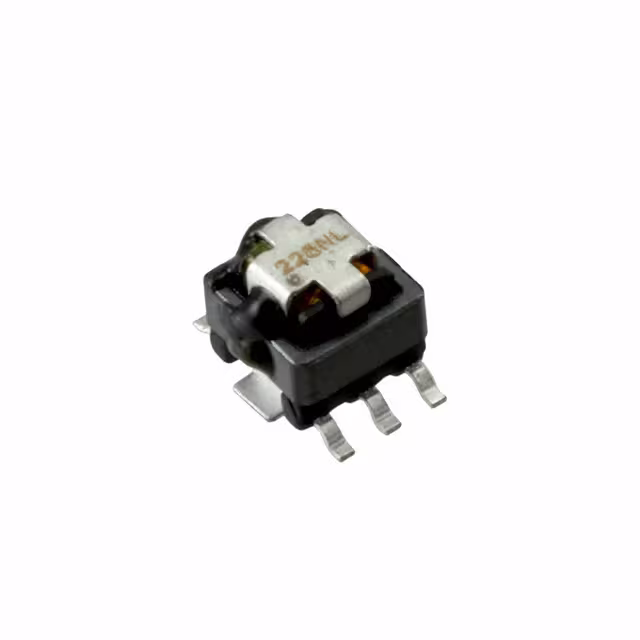

P8228NL CURR SENSE XFMR 1:100 10A SMD Pulse Electronics Power	2,015	-	RFQ	डेटाशीत	Tray	P822X	Active	50kHz ~ 1MHz	Invasive	10 A	2 mH	-	1:100	-	6mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.190 (4.83mm)
PE-68383NL CURR SENSE XFMR 1:1:200 SMD Pulse Electronics Power	3,961	-	RFQ	डेटाशीत	Tube	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	59.2 mH	-	1:1:200	-	1.15mOhm Primary, 3.9Ohm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PE-68210NLT CURR SENSE XFMR 1:1:50 SMD Pulse Electronics Power	3,857	-	RFQ	डेटाशीत	Tape & Reel (TR)	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PA1005.125QNL CURR SENSE XFMR 1:125 20A SMD Pulse Electronics Power	2,541	-	RFQ	डेटाशीत	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	3 mH	-	1:125	-	0.75mOhm Primary, 6.5Ohm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA1005.050NL CURR SENSE XFMR 1:50 20A SMD Pulse Electronics Power	3,076	-	RFQ	डेटाशीत	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA0368.070NL CURR SENSE XFMR 1:70 4A SMD Pulse Electronics Power	3,993	-	RFQ	डेटाशीत	Tube	-	Active	50kHz ~ 1MHz	Invasive	4 A	3.3 mH	-	1:70	-	4mOhm Primary, 1.2Ohm Secondary	-	Surface Mount	0.285 L x 0.352 W (7.25mm x 8.25mm)	0.124 (3.15mm)
PA0368.100NL CURR SENSE XFMR 1:100 4A SMD Pulse Electronics Power	2,692	-	RFQ	डेटाशीत	Tube	-	Active	50kHz ~ 1MHz	Invasive	4 A	6.7 mH	-	1:100	-	4mOhm Primary, 1.6Ohm Secondary	-	Surface Mount	0.285 L x 0.352 W (7.25mm x 8.25mm)	0.124 (3.15mm)
PA1005.070NL CURR SENSE XFMR 1:70 20A SMD Pulse Electronics Power	2,251	-	RFQ	डेटाशीत	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	980 µH	-	1:70	-	0.75mOhm Primary, 4.75Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PAS6322.030NLT XFRMR CURRENT SENSE 1:30 50A Pulse Electronics Power	3,054	-	RFQ	डेटाशीत	Tape & Reel (TR)	PAS6322.XXXNLT	Active	20kHz ~ 1MHz	Invasive	50 A	400 µH	-	1:30	-	0.5mOhm Primary, 240mOhm Secondary Max	-	Surface Mount	0.122 L x 0.252 W (3.10mm x 6.40mm)	0.029 (0.73mm)
PAS6322.125NLT XFRMR CURRENT SENSE 1:125 50A Pulse Electronics Power	2,642	-	RFQ	डेटाशीत	Tape & Reel (TR)	PAS6322.XXXNLT	Active	20kHz ~ 1MHz	Invasive	50 A	7 mH	-	1:125	-	0.5mOhm Primary, 4.2Ohm Secondary Max	-	Surface Mount	0.122 L x 0.252 W (3.10mm x 6.40mm)	0.029 (0.73mm)
PA3206NL PA3206NL Pulse Electronics Power	3,072	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
PA1005.050QNL CURR SENSE XFMR 1:50 20A SMD Pulse Electronics Power	2,513	-	RFQ	डेटाशीत	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary, 1.5Ohm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

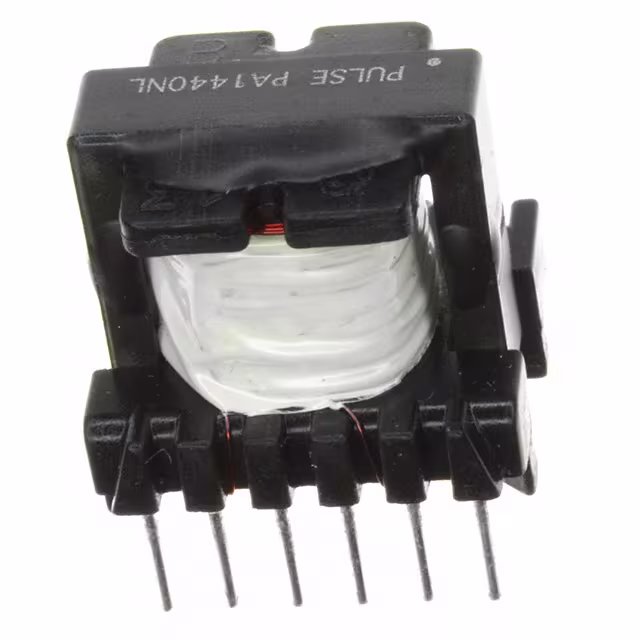

PA1440NL CURR SENSE XFMR SMD Pulse Electronics Power	3,529	-	RFQ		Bag	-	Obsolete	-	-	-	-	-	-	-	-	-	Surface Mount	-	-
PE-63618NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,867	-	RFQ	डेटाशीत	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100CT:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63691NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,037	-	RFQ	डेटाशीत	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	180 mH	-	-	300CT:1	300Ohm Primary, 11Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63586NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,583	-	RFQ	डेटाशीत	Tray	THT	Obsolete	20kHz ~ 200kHz	Invasive	20 A	5 mH	-	-	50:1	50Ohm Primary, 700mOhm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-64517NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,805	-	RFQ	डेटाशीत	Tray	THT	Obsolete	20kHz ~ 200kHz	Invasive	20 A	5 mH	-	-	50CT:1	50Ohm Primary, 700mOhm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PB0025NLT CURR SENSE XFMR 50:1 35A SMD Pulse Electronics Power	3,274	-	RFQ	डेटाशीत	Tape & Reel (TR)	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	1.4 mH	-	50:1	-	0.42mOhm Primary, 700mOhm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
