एल्यूमीनियम इलेक्ट्रोलाइटिक कैपेसिटर
| फोटो: | निर्माता भाग संख्या | उपलब्धता | मूल्य | मात्रा | डेटाशीत | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPV1V390MGD1TDCAP ALUM 39UF 20% 35V RADIAL Nichicon |
1,695 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 39 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 245 mA @ 100 kHz | 700 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVY2V4R7MPD1TDCAP ALUM 4.7UF 20% 350V RADIAL Nichicon |
1,208 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 4.7 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 44.85 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UES1H3R3MDM1TDCAP ALUM 3.3UF 20% 50V RADIAL Nichicon |
1,765 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UES | Not For New Designs | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPW1A221MED6TDCAP ALUM 220UF 20% 10V RADIAL Nichicon |
1,379 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 279.5 mA @ 120 Hz | 430 mA @ 100 kHz | 230 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.650 (16.50mm) | - | Through Hole |
|

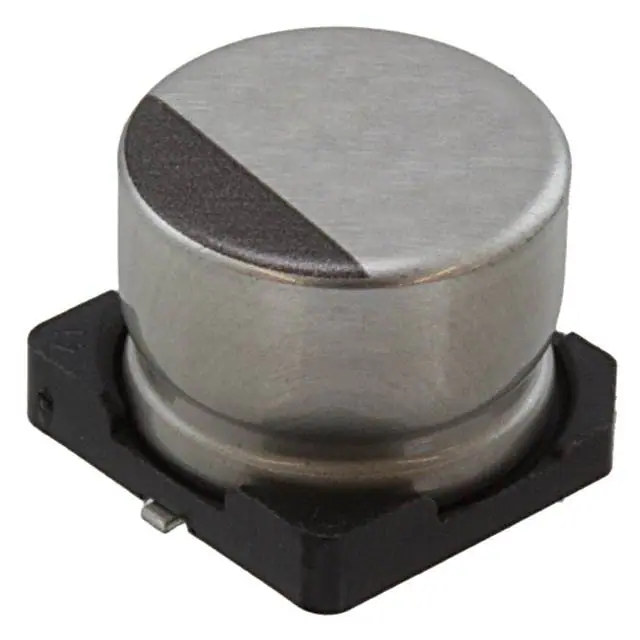

UWZ0J221MCL1GSCAP ALUM 220UF 20% 6.3V SMD Nichicon |
1,675 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 102 mA @ 120 Hz | 153 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UPJ1A561MPD1TDCAP ALUM 560UF 20% 10V RADIAL Nichicon |
1,595 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 560 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 730 mA @ 10 kHz | 160 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ULD2E1R8MED1TDCAP ALUM 1.8UF 20% 250V RADIAL Nichicon |
1,463 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 1.8 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
ULD2D2R2MED1TDCAP ALUM 2.2UF 20% 200V RADIAL Nichicon |
1,453 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 2.2 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
UPJ1A681MPD1TDCAP ALUM 680UF 20% 10V RADIAL Nichicon |
1,254 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 680 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 795 mA @ 10 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
UPM1K270MED1TDCAP ALUM 27UF 20% 80V RADIAL Nichicon |
1,868 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 27 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 220 mA @ 10 kHz | 630 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.650 (16.50mm) | - | Through Hole |
|
UZS1E100MCL1GBCAP ALUM 10UF 20% 25V SMD Nichicon |
1,798 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.181 (4.60mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UTT1E470MDD1TDCAP ALUM 47UF 20% 25V RADIAL Nichicon |
1,915 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UTT | Obsolete | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 65.2 mA @ 120 Hz | 163 mA @ 100 kHz | 1.1 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.413 (10.50mm) | - | Through Hole |
|
UBT1H2R2MPD1TDCAP ALUM 2.2UF 20% 50V RADIAL Nichicon |
1,670 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UBT | Not For New Designs | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 1.8 Ohms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UUX1V330MCL1GSCAP ALUM 33UF 20% 35V SMD Nichicon |
1,372 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 76 mA @ 120 Hz | 126.92 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UFG2A3R3MDM1TDCAP ALUM 3.3UF 20% 100V RADIAL Nichicon |
1,283 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UFG | Not For New Designs | 3.3 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 27 mA @ 120 Hz | 54 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVZ1A102MPD1TDCAP ALUM 1000UF 20% 10V RADIAL Nichicon |
707 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 1000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
UFG2A4R7MDM1TDCAP ALUM 4.7UF 20% 100V RADIAL Nichicon |
1,124 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UFG | Not For New Designs | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 36 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPM1V560MED1TDCAP ALUM 56UF 20% 35V RADIAL Nichicon |
1,070 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 56 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 295 mA @ 10 kHz | 280 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
UPM1J270MED1TDCAP ALUM 27UF 20% 63V RADIAL Nichicon |
1,004 | - |
RFQ |
डेटाशीत |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 27 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 240 mA @ 10 kHz | 430 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|

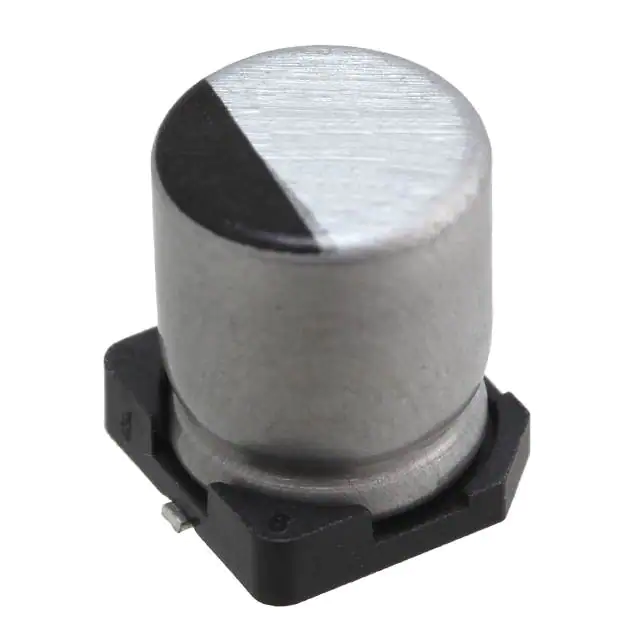

UWD1C151MCL1GSCAP ALUM 150UF 20% 16V SMD Nichicon |
1,799 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 150 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
