एल्यूमीनियम इलेक्ट्रोलाइटिक कैपेसिटर
| फोटो: | निर्माता भाग संख्या | उपलब्धता | मूल्य | मात्रा | डेटाशीत | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ2Z221MELACAP ALUM 220UF 20% 180V SNAP Nichicon |
2,030 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 220 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.35 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
LGJ2Z271MELACAP ALUM 270UF 20% 180V SNAP Nichicon |
3,878 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 270 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.425 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
LGJ2Z331MELBCAP ALUM 330UF 20% 180V SNAP Nichicon |
3,299 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 330 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.725 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
LGJ2Z391MELBCAP ALUM 390UF 20% 180V SNAP Nichicon |
2,860 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
LGJ2Z391MELCCAP ALUM 390UF 20% 180V SNAP Nichicon |
2,405 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
LGJ2Z471MELCCAP ALUM 470UF 20% 180V SNAP Nichicon |
3,443 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 470 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 2.04 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
LGJ2Z561MELCCAP ALUM 560UF 20% 180V SNAP Nichicon |
3,999 | - |
RFQ |
डेटाशीत |
Bulk | LGJ | Active | 560 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
LGY1H392MELZ45CAP ALUM 3900UF 20% 50V SNAP Nichicon |
3,669 | - |
RFQ |
डेटाशीत |
Bulk | LGY | Active | 3900 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | - | - | - | Through Hole |
|
LGY2C222MELCCAP ALUM 2200UF 20% 160V SNAP Nichicon |
2,346 | - |
RFQ |
डेटाशीत |
Bulk | LGY | Obsolete | 2200 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGY2W181MELCCAP ALUM 180UF 20% 450V SNAP Nichicon |
2,726 | - |
RFQ |
डेटाशीत |
Bulk | LGY | Obsolete | 180 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.0005 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
LGY2W560MELZCAP ALUM 56UF 20% 450V SNAP Nichicon |
2,589 | - |
RFQ |
डेटाशीत |
Bulk | LGY | Obsolete | 56 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

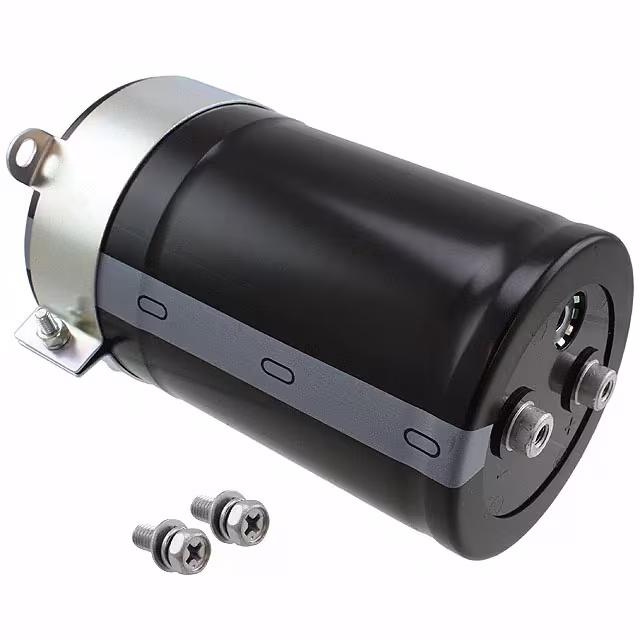

LNX2V562MSEHCAP ALUM 5600UF 20% 350V SCREW Nichicon |
2,767 | - |
RFQ |
डेटाशीत |
Bulk | LNX | Obsolete | 5600 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.4 A @ 120 Hz | 22.96 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.449 (113.00mm) | - | Chassis Mount |
|
LQR2V123MSEJCAP ALUM 12000UF 20% 350V SCREW Nichicon |
2,068 | - |
RFQ |
डेटाशीत |
Bulk | LQR | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | 35.7 A @ 120 Hz | - | - | - | - | - | - | Chassis Mount |
|
UCD1V101MCL1GSCAP ALUM 100UF 20% 35V SMD Nichicon |
2,040 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UCD | Obsolete | 100 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCW0J470MNL1GSCAP ALUM 47UF 20% 6.3V SMD Nichicon |
3,996 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UCW | Active | 47 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.287 (7.30mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UUX1J470MNL6GSCAP ALUM 47UF 20% 63V SMD Nichicon |
3,861 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UUX | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 367.4 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UWT1E150MCL1GBCAP ALUM 15UF 20% 25V SMD Nichicon |
3,315 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UWT | Active | 15 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Surface Mount |
|
|
UWZ0J101MCL1GSCAP ALUM 100UF 20% 6.3V SMD Nichicon |
2,992 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UWZ | Active | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWZ1A101MCL1GSCAP ALUM 100UF 20% 10V SMD Nichicon |
3,014 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UWZ | Active | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWZ1A470MCL1GSCAP ALUM 47UF 20% 10V SMD Nichicon |
2,093 | - |
RFQ |
डेटाशीत |
Tape & Reel (TR) | UWZ | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 46 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
